Special Order - Estimated 2 - 4 Week Turn Around - Reserve Yours Now

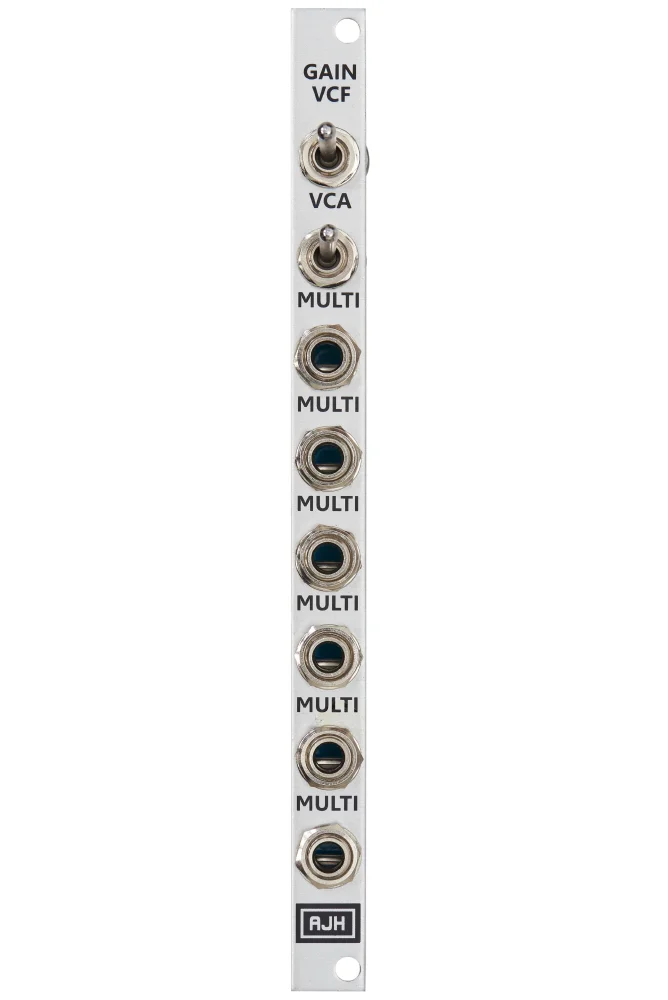

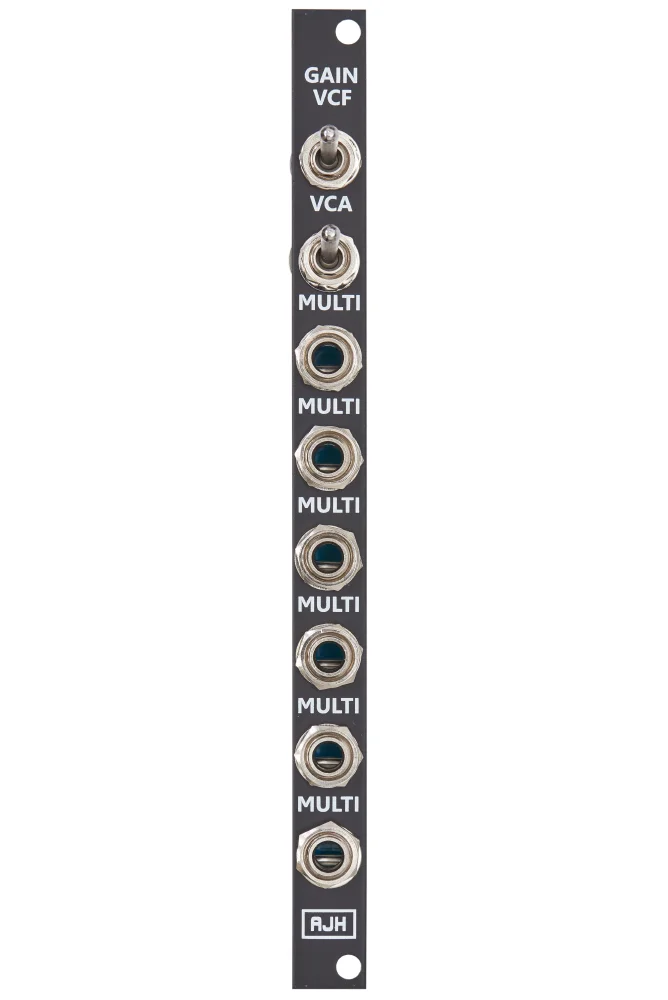

AJH’s Gain Switch Expander / Multiple relocates the gain functions of Minimod VCF and VCA to the front of your modular system. Normally, these parameters can only be edited via jumpers on the circuit board of the modules. In detail, the expander offers two switches, which enable the user to activate overdrive effects. Additionally, a multiple with six jacks was implemented.
AJHs Gain Switch Expander / Multiple is installed by replacing the jumpers of filter and amplifier with adapter cables. Plug in the other ends at the expansion module and you’re done. It is advisable to put the Gain Switch Expander / Multiple between VCF and VCA.
Power consumption: 0mA
Depth: 26mm 2 HP
Condition: New
Info from Alex4
