Six Channel Summing Mixer / Attenuator

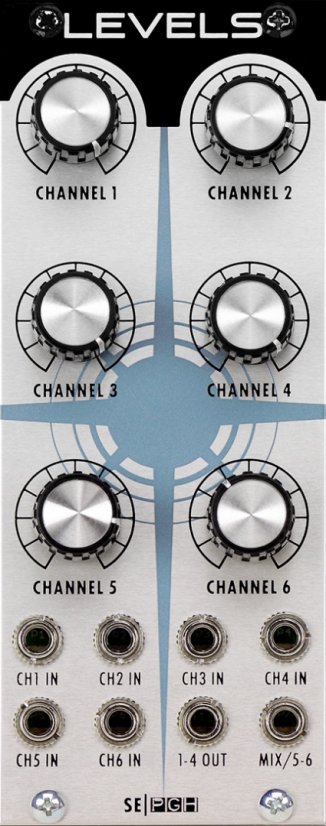

LEVELS is a versatile, low-noise six channel summing mixer/attenuator for audio and CV, which can be used rather effectively in a variety of ways: 6 in 1 out, or two separate mixers: 4 in 1 out, and 2 in 1 out, e. g., when only jacked-in to MIX 5/6 output all input channels pass through; utilizing the 1-4 OUT removes channels 1-4 from the MIX 5/6 output. Handy indeed.
The pots are wired with a logarithmic volume curve that is tuned for use with audio but it will work splendidly with CV as well. Pressing LEVELS into service as a wave-shaper by patching all of the individual OSCILLATION waveform outs (sub, sine, tri, saw, ramp, square) into CHANNEL inputs 1-6, makes beautiful music, and an exclusive, vast, morphable hybrid waveform of your innermost sound designs; it feels that kind of good when the these two Modstar pieces are tied-in together.
Potentiometer Potential
Six attenuation pots control the CHANNEL 1, CHANNEL 2, CHANNEL 3, CHANNEL 4, CHANNEL 5, and CHANNEL 6.
Patch it Up
Eight patch points: CH1 IN, CH 2 IN, CH 3 IN, CH 4 IN, CH 5 IN,
CH 6 IN, 1-4 OUT, MIX/5-6.
All Controls and Patch Points
CHANNEL 1 β Adjusts the level or value of 1.
CHANNEL 2 β Adjusts the level or value of 2.
CHANNEL 3 β Adjusts the level or value of 3.
CHANNEL 4 β Adjusts the level or value of 4.
CHANNEL 5 β Adjusts the level or value of 5.
CHANNEL 6 β Adjusts the level or value of 6.
CH 1 IN β Channel 1 input.
CH 2 INβ Channel 2 input.
CH 3 INβ Channel 3 input.
CH 4 INβ Channel 4 input.
CH 5 IN β Channel 5 input.
CH 6 IN β Channel 6 input.
1-4 OUT β Channels 1-4 output.
MIX/5-6 β All channels output (MIX), or 5-6 when cable is plugged into any of the 1-4 channel inputs.
