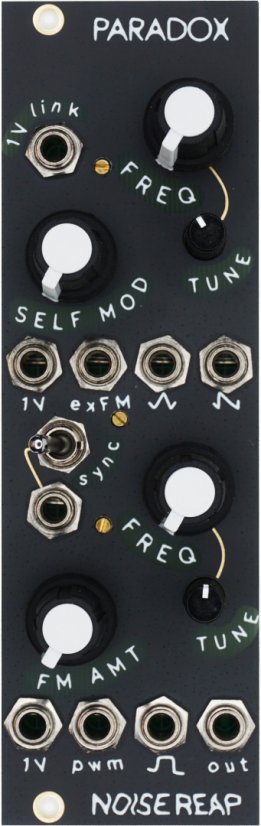

Dual Intermodulating VCO
Paradox is a pair of triangle core VCOs. They can be operated independently. Or, through a diverse set of modulation capabilities, work together to create a wealth of analog FM sounds.
100% analog dual VCO
Sub to supersonic frequency range
Triangle, pulse, and sawtooth outputs
Self Modulation is a technique borrowed from the Bermuda VCO. It sends a portion of the top oscillator's output back into its own core. On its own this results in pleasant timbre shaping and light de-tuning. When used with other modulation parameters, self mod is an endless source for sweetspots and non-traditional waveshaping.
The top VCO can be synced to the bottom VCO or an external source. This is implemented in a haphazard way with no regard for holding waveshape. Think of the the sync as a unique modulation parameter. It creates new waveshapes, gates the core on and off, creates filter sweep effects, and more.
The name Paradox is derived from its complex backend of intermodulation and ambiguity. One VCO modulates the other, which modulates the first, which modules the other... These loops can become so intense that the module can be used as a voltage controlled noisebox as well as a traditional VCO.
35mA @ +12V
35mA @ -12V
